View In:   ArcGIS Online Map Viewer

Name: Coastal Inundation 3ft

Display Field: SHAPE.AREA

Type: Feature Layer

Geometry Type: esriGeometryPolygon

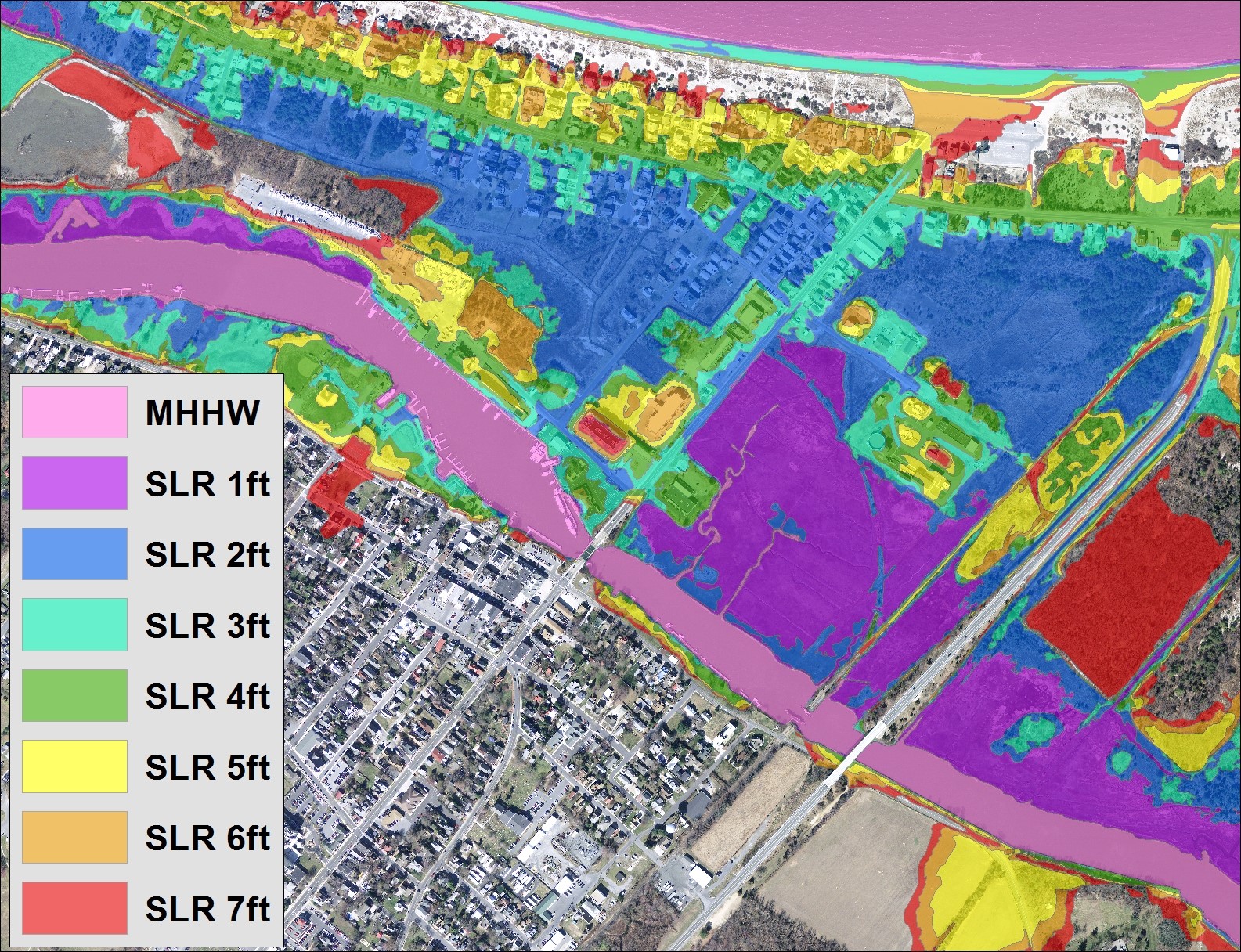

Description: <DIV STYLE="text-align:Left;"><DIV><P><SPAN>This geodatabase contains a series of state-wide SLR coastal inundation maps corresponding to water surfaces from the mean higher-high water (MHHW) level to 7 feet above MHHW, in 1-foot increments. Development of the bathtub-model inundation maps was based on a high-quality, 1-meter bare earth Digital Elevation Model (DEM) derived from the 2014 state-wide LiDAR acquisition. Elevated roadways and bridges not represented in the bare earth DEM were identified, and manually assessed for inundation for each SLR scenario. Additional documentation can be found at http://www.dgs.udel.edu/projects/determination-future-sea-level-rise-planning-scenarios-delaware</SPAN></P></DIV></DIV>

Service Item Id: 1949f06b8bbd48188c7f672e54bcf3da

Copyright Text: This mapping project was completed by the Delaware Geological Survey (DGS), University of Delaware using Federal funds under award NA13NOS4190093 from the Delaware Department of Natural Resources and Environmental Control, Delaware Coastal Programs and the Office for Coastal Management (OCM), National Oceanic and Atmospheric Administration (NOAA), U.S. Department of Commerce. The statements findings, conclusions and recommendations are those of the author(s) and do not necessarily reflect the views of the OCM, NOAA or the U.S. Department of Commerce. LiDAR data was collected through a collaboration between the United States Geological Survey (USGS), DGS, Department of Natural Resources and Environmental Control (DNREC), and Delaware Department of Transportation (DelDOT), funded through the Hurricane Sandy Supplemental Fund.

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports ValidateSQL: true

Supports Calculate: true

Supports Datum Transformation: true

Extent:

XMin: 168711.5447
YMin: 50022.0147999991
XMax: 237678.8108
YMax: 200886.626800001
Spatial Reference: 26957  (26957)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [56, 168, 0, 255]
Outline:
Style: esriSLSSolid
Color: [38, 115, 0, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 40
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: true
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field:

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID, editable: false, nullable: false, defaultValue: null, modelName: OBJECTID )
• Shape__Area ( type: esriFieldTypeDouble, alias: SHAPE.AREA, editable: false, nullable: true, defaultValue: null, modelName: SHAPE.AREA )
• Shape__Length ( type: esriFieldTypeDouble, alias: SHAPE.LEN, editable: false, nullable: true, defaultValue: null, modelName: SHAPE.LEN )

Templates:

• Name: Coastal Inundation 3ft
  Description:
  Prototype:
  Drawing Tool: esriFeatureEditToolPolygon

Capabilities: Query

Sync Can Return Changes: false

Is Data Versioned: false

Supports Rollback On Failure: true

Supports ApplyEdits With Global Ids: false

Supports Query With Historic Moment: false

Supports Coordinates Quantization: true

Supported Operations:   Query   Query Analytic   Calculate   Validate SQL   Generate Renderer   Return Updates   Iteminfo   Thumbnail   Metadata
